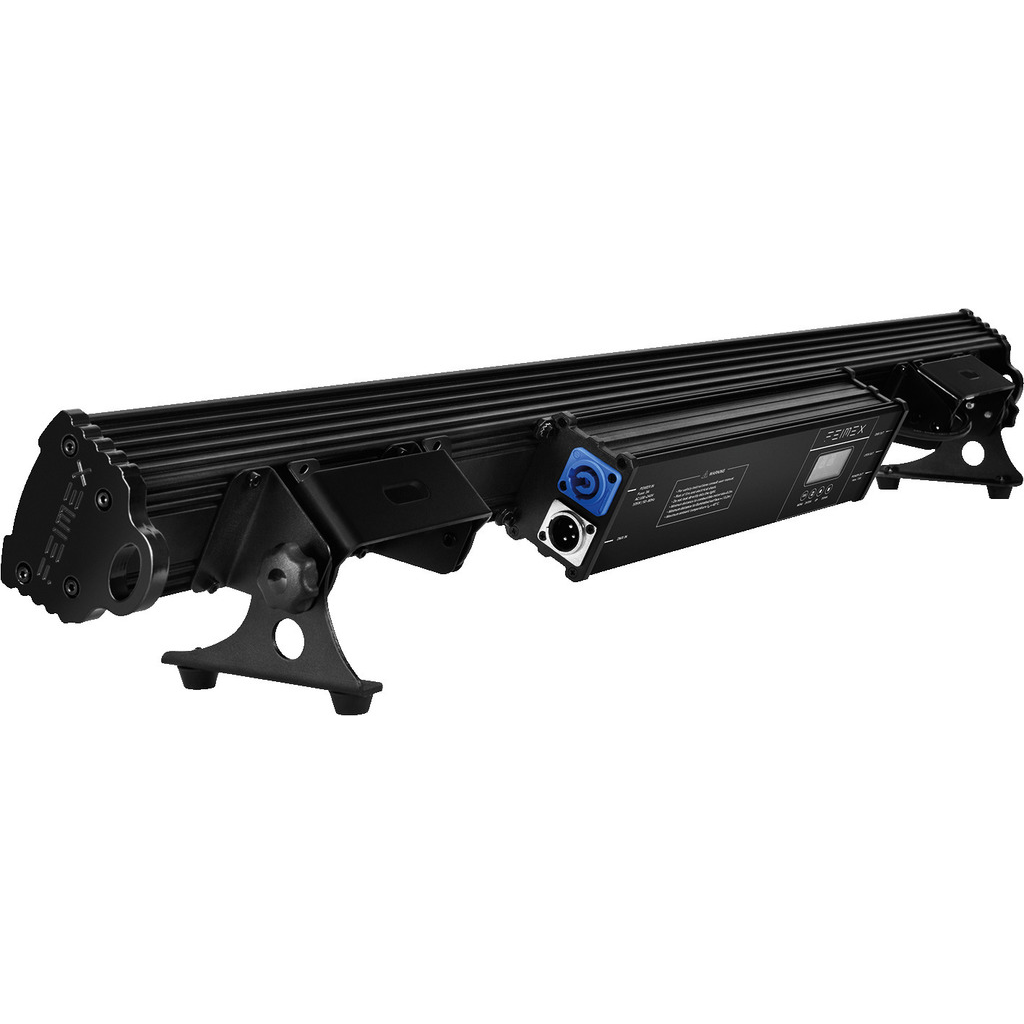

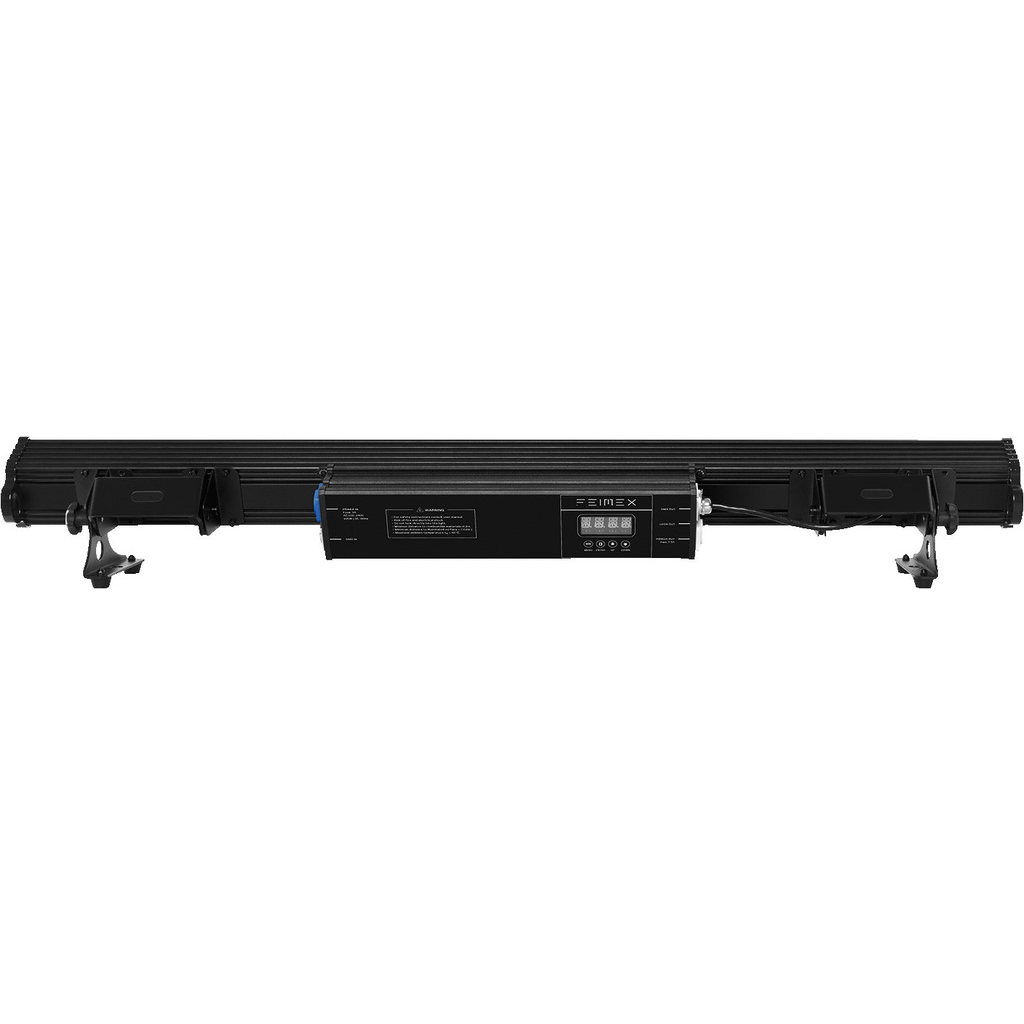

Indoor RGBW LED Barlight - DMX or self running control
Code: MZMFX500LED
£680.40
(£567.00
ex VAT)
Choose quantity
Please allow around a working week for dispatch of this product
Description
A total of 15 high-performance LEDs are fitted on one metre and provide an excellent reproduction of the four colours red, green, blue and white. The individual control of each LED ensures unique lighting.
Thanks to the FX bracket, it can be used for most versatile applications. No matter whether on the floor or attached to a cross beam, you no longer have to make extensive changes.
Due to the design of the FX bracket, the FX-500LED is still standing, even when fitted with a super clamp.
FEIMEX 4-in-1 LED bar, 105 W
- RGBW colour mixing with or without DMX controller
- 5 individual dimming curves
- User-defined program
- LED display with password protection
- Transfer of user-defined programs between the lights
- Operating status: DMX512 connection with ID address or master/slave
- TITANEX connection cable with NEUTRIK PowerCon plug
- For indoor and outdoor applications (IP20)
Monacor product code: FEIMEX-500LED
Details
| Optics | fixed optical systems |
| Beam angle | 30° |
| LEDs | 15 x 4-in-1 multicolour |
| Colours | 15 x red, 15 x green, 15 x blue, 15 x white |
| Luminous flux | 2,933.6 lm |
| Luminous efficiency | 26.89 lm/W |
| Luminous intensity | 10,105 cd |
| Drive current | 350 mA |
| Service life LEDs | ? 50,000 h |
| Colour mixture | RGBW |
| Operating temperature | -20 to +40 °C |
| Cooling | convection-cooled |
| Protocol | USITT DMX512 |
| DMX channels | 60/21/17/15/11/6/4 |
| Internal memory | fixed colours based on LEE™ and ROSCO™, stand-alone program and custom program, master/slave control |
| Stroboscope | 0-20 Hz |
| Dimmer | 0-100% |
| Operation | LED display |
| DMX512 connection | 3-pole XLR from NEUTRIK |
| Mains voltage | ~ 100-240 V |
| Power consumption, operation | 105 W |
| Connections | NEUTRIK PowerCon (in/out)
Titanex (in/out), 0.5 m |
| Housing material | injection-moulded aluminium |
| Housing colour | black |
| Type of mounting | compact Y-bracket for suspended and vertical installation |
| Protective class | IP20 |

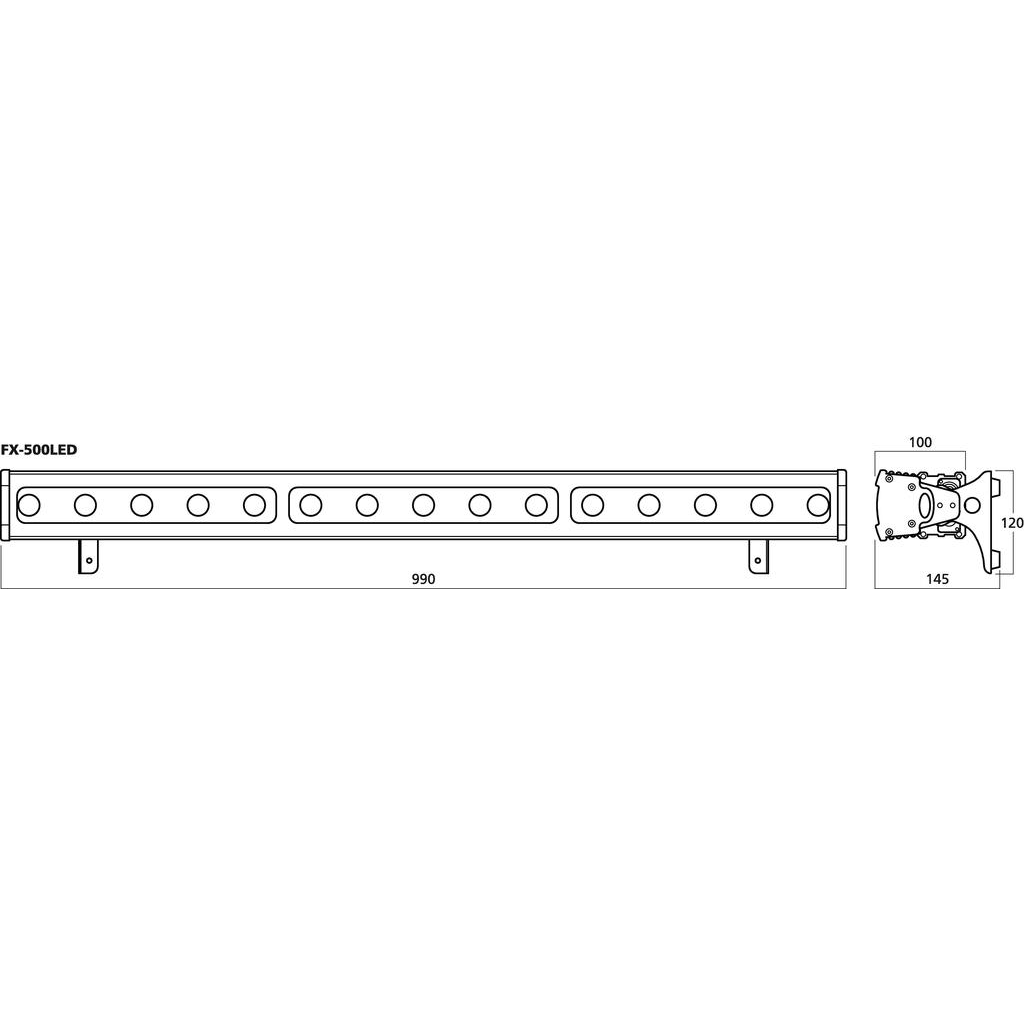

| Dimensions | 990 x 120 x 145 mm |
| Weight | 6.86 kg |
