Backpack/sandwich board Portable PA System for processions and other mobile applications

A delivery discount of £9.54 (inc VAT) will be applied when this product is purchased online

Write a review

£1,020.70 (£850.58 ex VAT)

2 +

£1,004.63 each (£837.19 each ex VAT)

Choose quantity

Order now for dispatch on Thu 12th Feb.

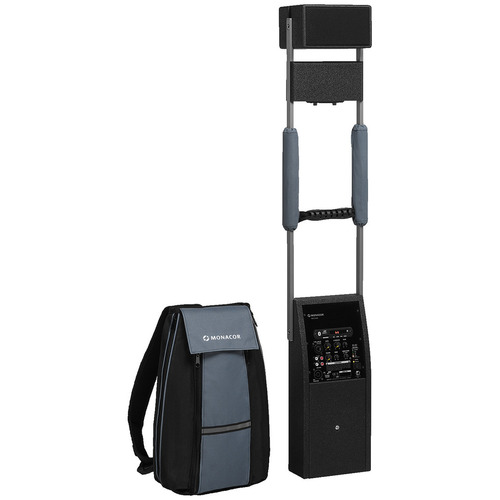

PAS-254D Backpack portable PA system for processions and other mobile applications.

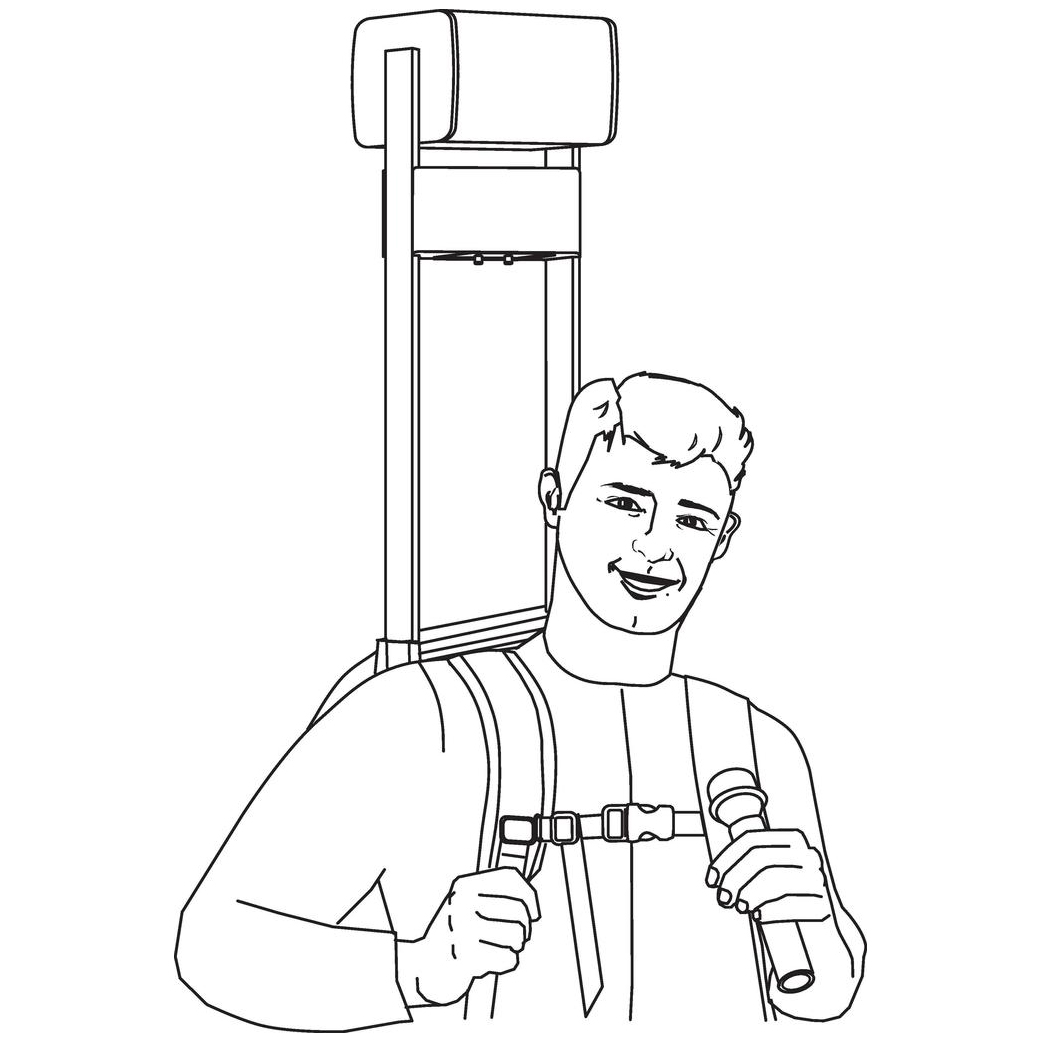

Very comfortable to wear and great mobility due to backpack method
1 speaker with 4 speaker chassis
Class D power amplifier
Integrated 2-channel multifrequency wireless receiver (TXA-1822MR)
Bluetooth receiver for wireless connection of mobile audio devices
Adjustable USB/SD card player with connection for external storage media
Built-in rechargeable lead gel battery 12 V/7.2 Ah (operating time: up to 7 hours)
Compartment for spare rechargeable battery to extend operating time
Integrated automatic battery charging
Charging socket for supplied charger

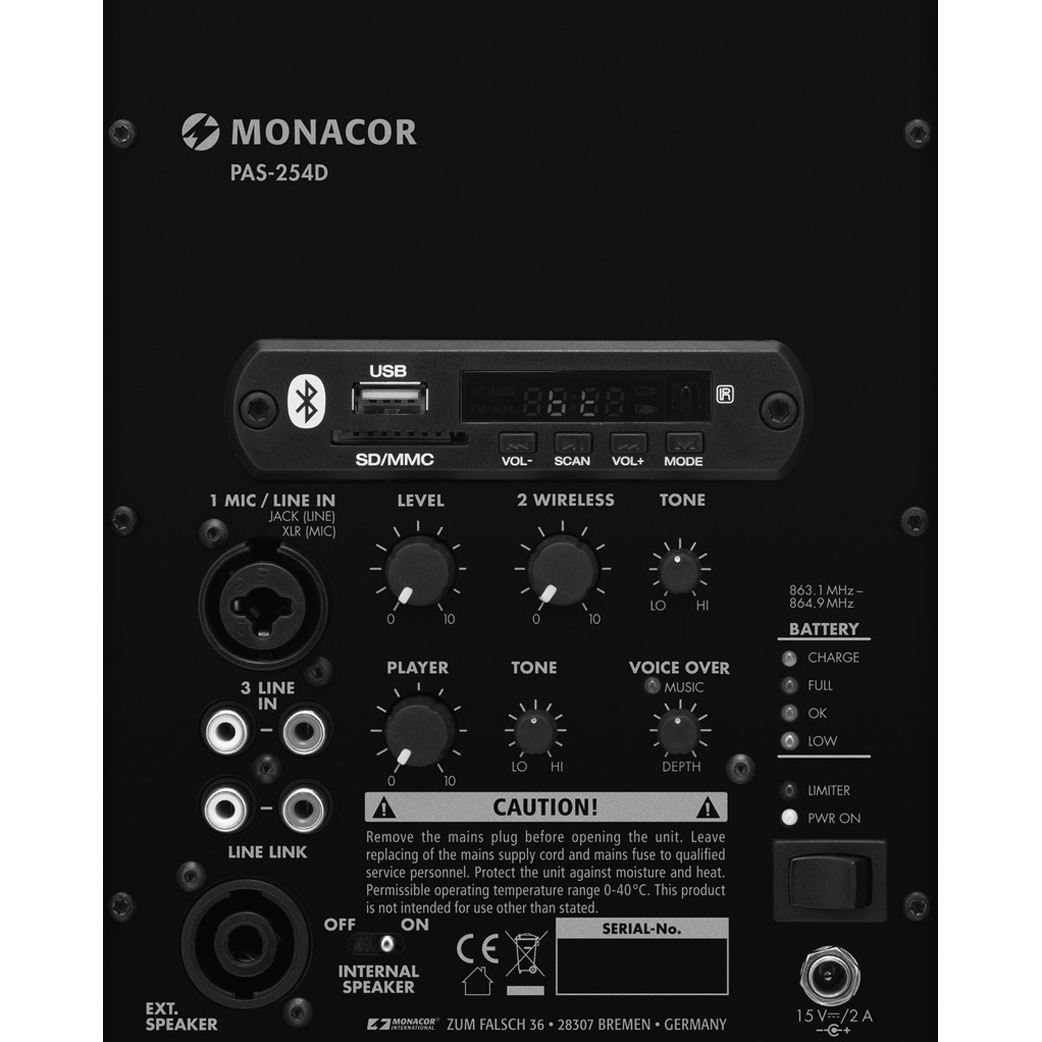

1 input via comb. jack mic (XLR)/line (6.3 mm), gain control, tone control, mic input with 12 V phantom power
1 stereo line input via RCA jacks, gain control, tone control
MIX OUT output (RCA)
Output for a speaker (min. impedance: 4 ?), either additionally or alternatively to existing speakers
Adjustable voice over function
Limiter function
Nylon backpack with storage pockets

Matching microphone transmitters or pocket transmitters are available at option, e.g. TXA-800HT and TXA-800HSE.

Technical specifications PAS-254D

PAS-254D
Rated power (P _RMS)	70 W
Peak output power	80 W
Frequency range	80-20,000 Hz
Carrier frequency	863.1-864.9 MHz
Operating range	? 100 m
Inputs	2 mV (mic), 14 mV (line, jack), 80 mV (line, RCA)
Link	300 mV
Max. SPL	116 dB
Power supply	rech. batt. 12 V/7.2 Ah
Admiss. ambient temp.	0-40 °C
Dimensions	Total length: 120 cm
Weight	7.7 kg
Connections	1 x XLR (mic), 1 x 6.3 mm jack (line), 1 x RCA L/R (line in), 1 x RCA L/R (line out), 1 x USB, 1 x SPEAKER

MONACOR product code: PAS-25
