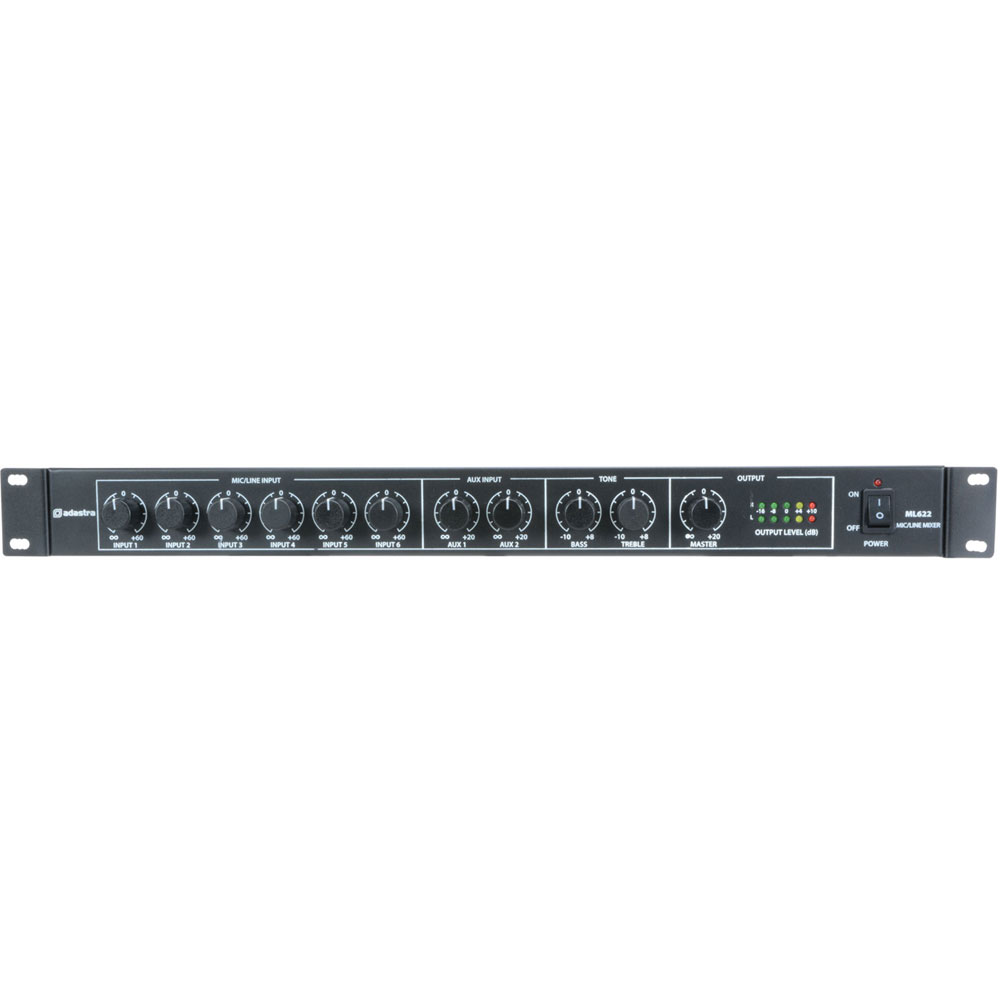

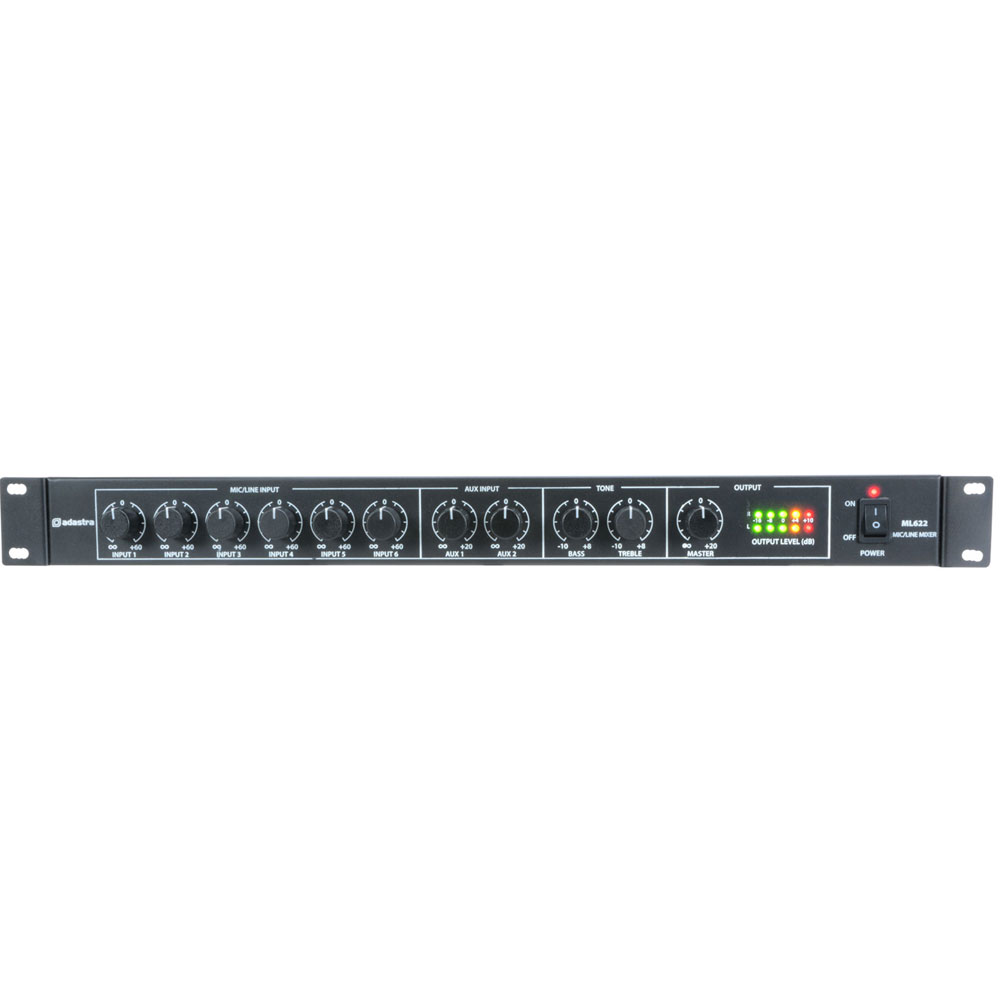

Rack-mount 1U audio mixer with 6 mic/line i/p and 2 auxiliary i/p
Code: MX953026
£159.42
(£132.85
ex VAT)
Quantity Pricing
2
+
£143.86
each
(£119.88
each ex VAT)
Choose quantity
Order now for next working day dispatch.
Description
Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level.
Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls.
Designed as a master or expansion mixer for installed sound systems and conferences.
- 6 switchable mic or line inputs
- 2 stereo aux inputs
- Individually switchable phantom power
- 24Vdc power option
adastra product code: 953.026UK
Details
Power
supply:
100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse: T1AL 250V (mains) or F500mA (24Vdc)
Phantom power: +20Vdc (switchable)

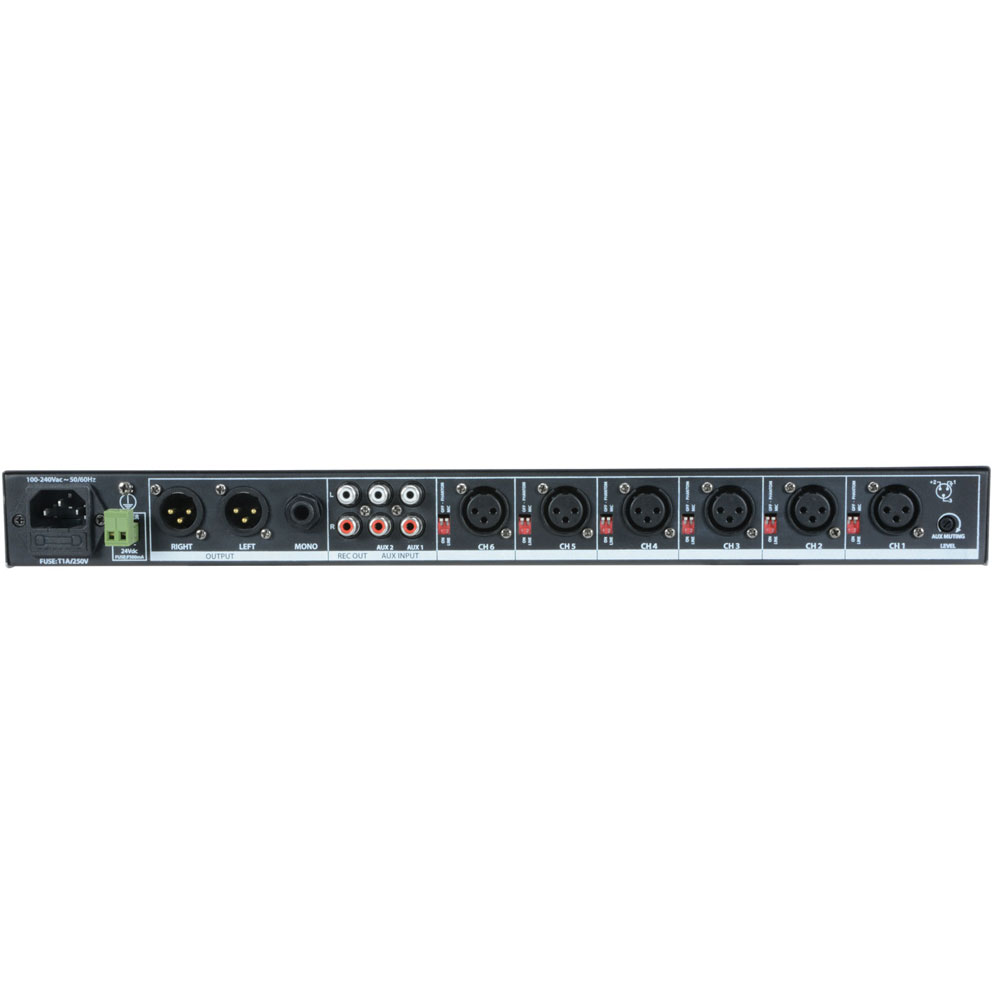

Inputs: mic/line 6 x balanced XLR
Inputs: aux 2 x L+R RCA
Outputs: L+R XLR, mono 6.3mm jack, L+R RCA (REC)
Controls: 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
Input impedance: 3.3k Ohms (mic/line), 10k Ohms (aux)
Frequency response: mic 20Hz - 18kHz
Frequency response: line 14Hz - 20kHz
Frequency response: aux 10Hz - 23kHz
Input sensitivity: mic -45dBV
Input sensitivity: aux/line -10dBV
Signal to noise ratio: mic 55dB
Signal to noise ratio: aux/line 60dB
THD: 0.05%
Dimensions: 482 x 130 x 44mm
Weight: 1.43kg
Fuse: T1AL 250V (mains) or F500mA (24Vdc)
Phantom power: +20Vdc (switchable)
Inputs: mic/line 6 x balanced XLR
Inputs: aux 2 x L+R RCA
Outputs: L+R XLR, mono 6.3mm jack, L+R RCA (REC)
Controls: 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
Input impedance: 3.3k Ohms (mic/line), 10k Ohms (aux)
Frequency response: mic 20Hz - 18kHz
Frequency response: line 14Hz - 20kHz
Frequency response: aux 10Hz - 23kHz
Input sensitivity: mic -45dBV
Input sensitivity: aux/line -10dBV
Signal to noise ratio: mic 55dB
Signal to noise ratio: aux/line 60dB
THD: 0.05%
Dimensions: 482 x 130 x 44mm
Weight: 1.43kg
