IMG Stageline TXS-646 4 channel wireless desk paging mic system
Code: MZMTXS646K2
£682.80
(£569.00
ex VAT)
Choose quantity
Please allow 3 or 4 working days for dispatch of this product
Description
One 4-channel IMG Stageline TXS-646 multi-frequency receiver unit with UHF PLL technology 672.000-696.975MHz and four TXS606DT desk paging transmitters.
Quad receiver TXS-646
- 1,000 selectable UHF frequencies (672.000-696.975MHz) for each channel (10 groups with 100 channels each)
- ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
- Automatic scan
- True diversity system with removable antennas (BNC connection)
- Volume and squelch can be adjusted for each channel
- LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED display for audio signal of each channel
- XLR output for each channel, bal.
- 6.3mm output for mixed signal
- Robust metal housing
- Supplied with PSU
- 482mm (19") rack installation, 1RS

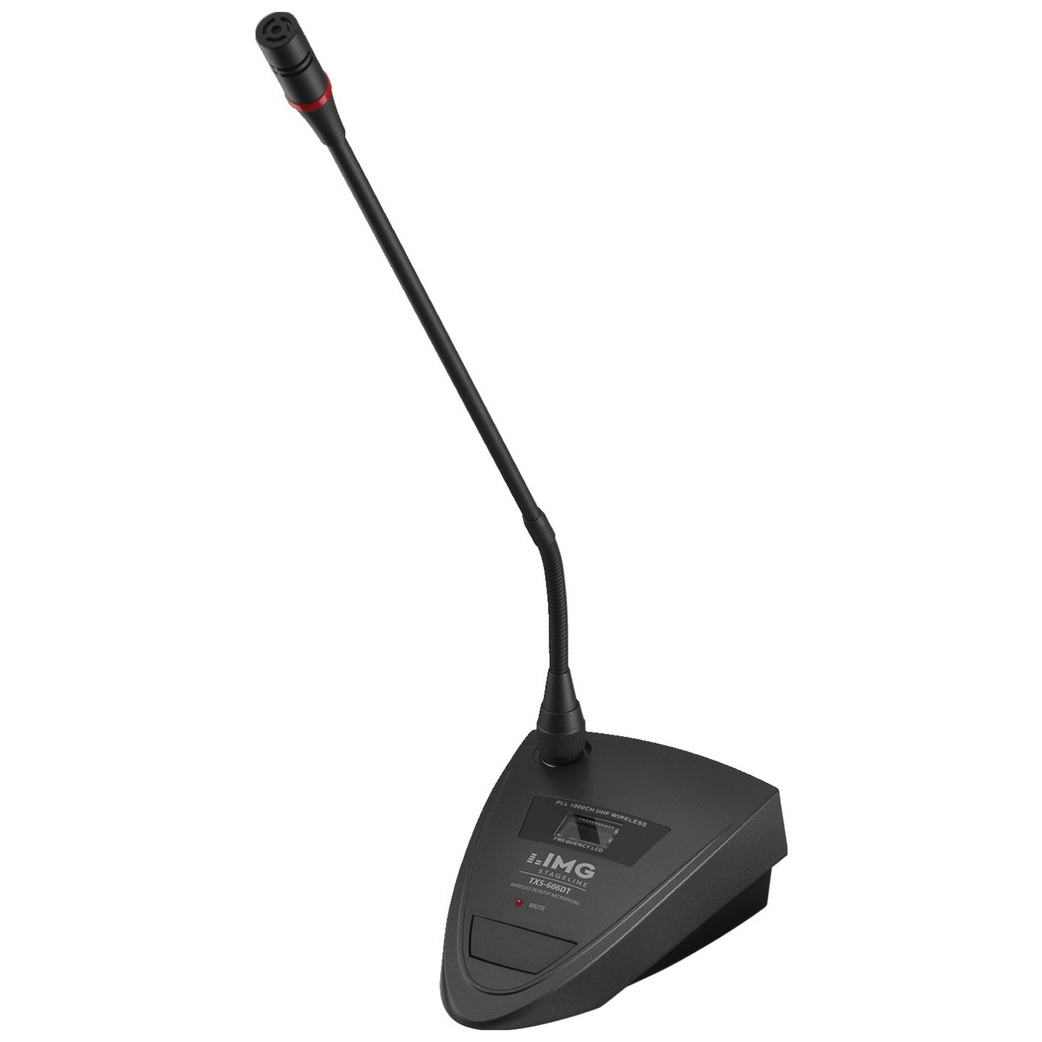

Wireless desktop microphone with integrated multi-frequency
transmitter TXS606DT
- Electret microphone cartridge, cardioid polar pattern
- 350 mm gooseneck, removable
- 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
- Adjustable sensitivity
- Switchable transmitting power (high: 25 mW/low: 2.5 mW)
- LCD for indicating group/channel, audio level and battery status
- Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence required for this system in the EU
IMG STAGE LINE product codes: Quad receiver TXS-646. Paging
desk transmitters TXS-606DT
Details
Receiver
| Carrier frequency | 672.000-696.975MHz |
| RF S/N ratio | 105dB |
| Audio frequency range | 30-18,000Hz |
| THD | < 0.5% |
| Dynamic range | 120dB |
| Audio output | 350mV/600 Ohm (jack)
25mV/600 Ohm (XLR, bal.) |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | via supplied
plug-in PSU |
| Dimensions | 482x45x310mm |
| Weight | 2.9kg |
