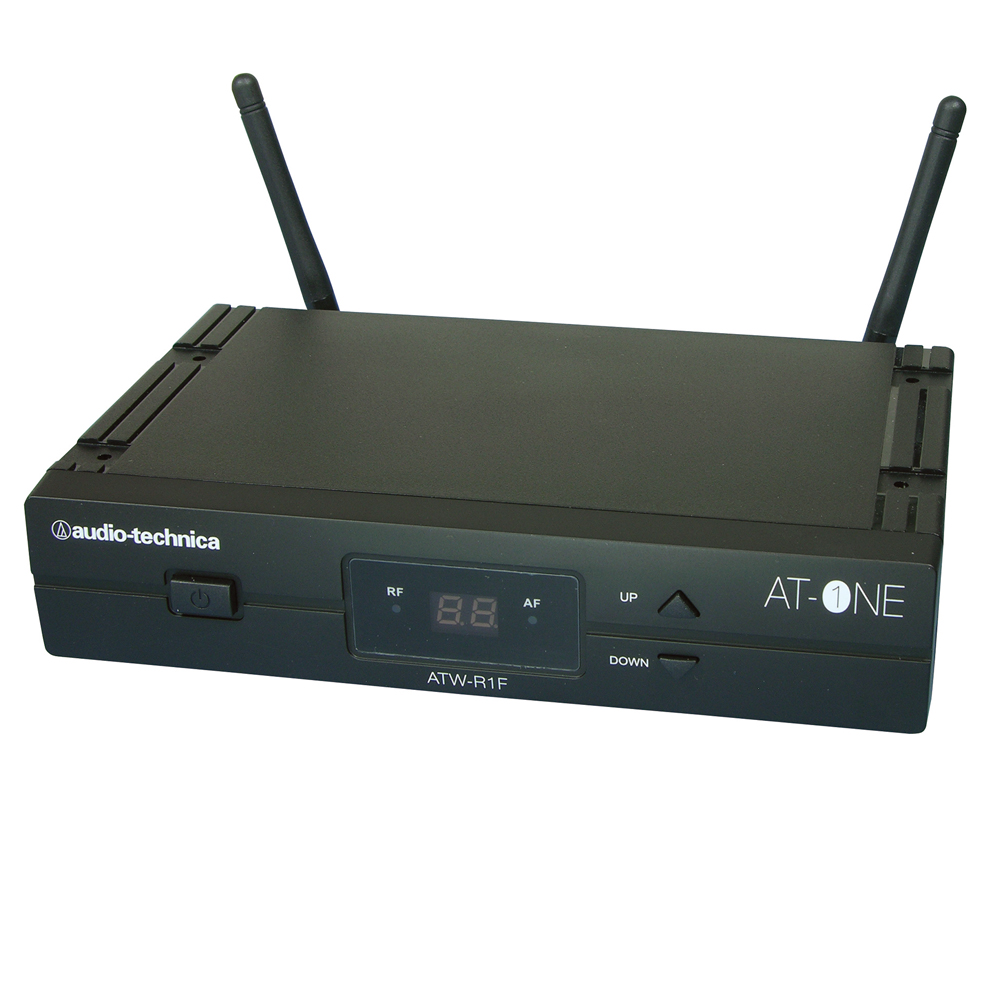

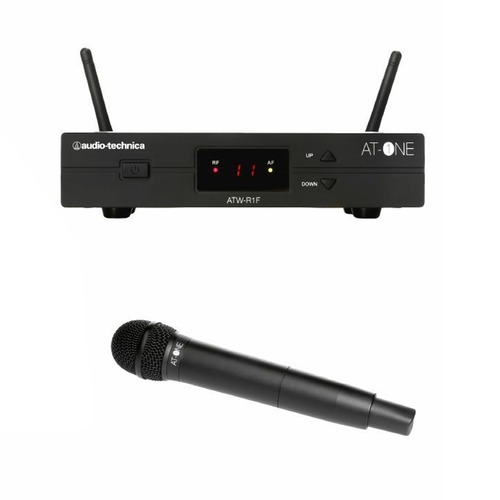

Audio Technica Handheld Mic System ATW-13F

• 2 x 4 Channel Frequency Plan
• Channel 70 - license free in the UK
• Clear Receiver Display
• Rack-Mountable Design
• Intuitive Receiver and Transmitter Controls
• RF Indicator Light
• Sturdy But Stylish Build Quality

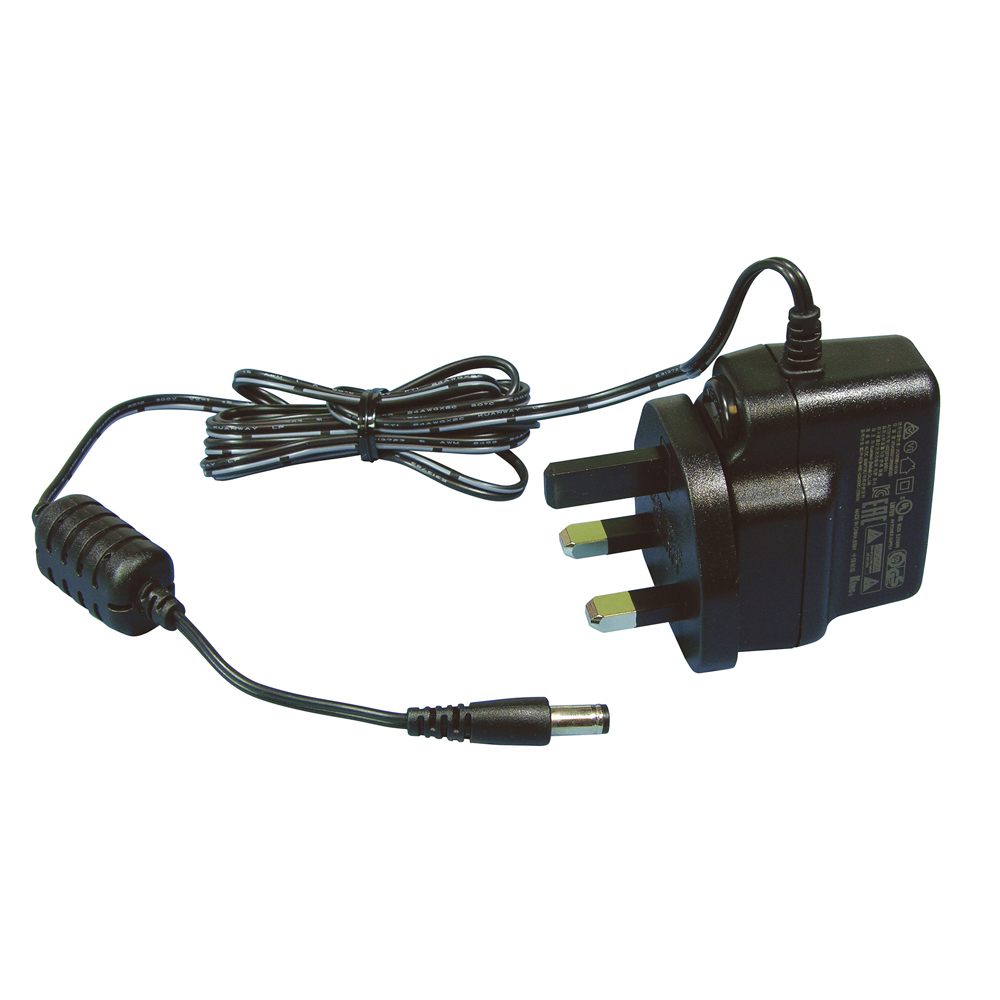

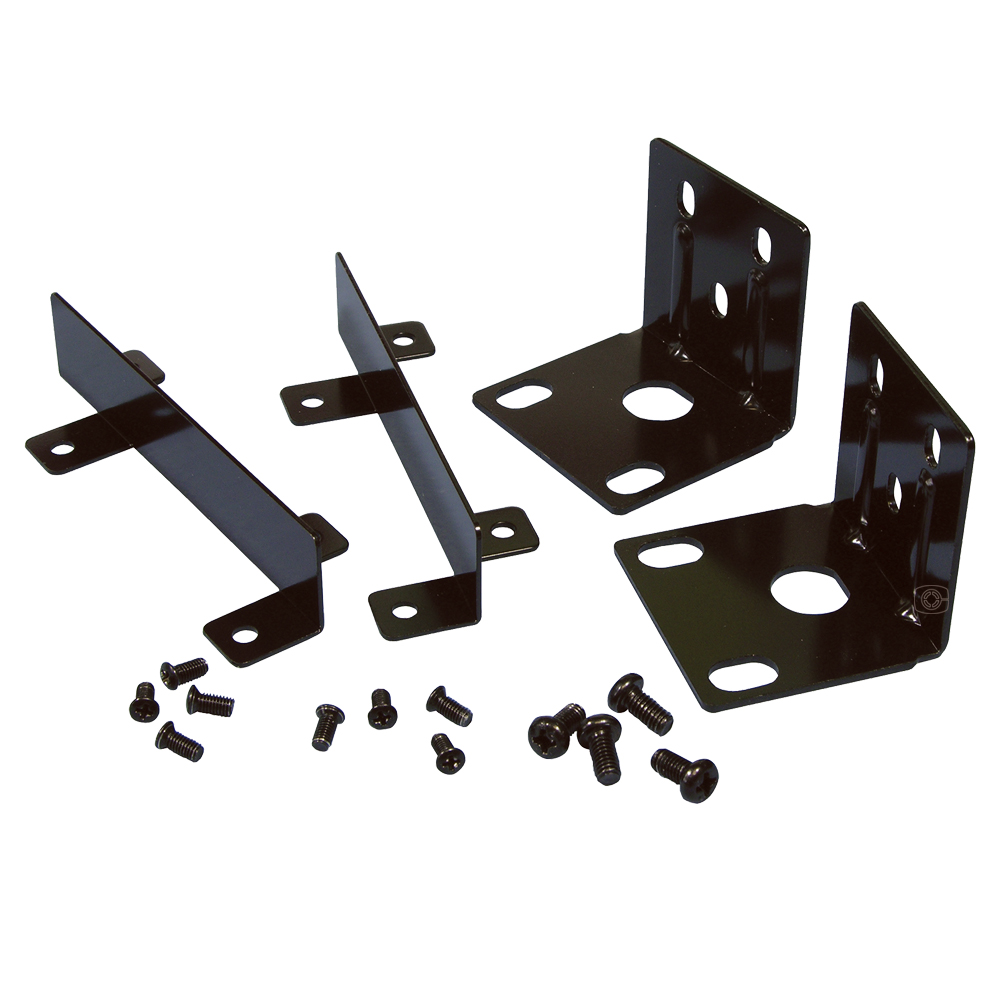

• Accessories included: AC Adapter, Antennas, Rack mount adapter

Overall System

• Frequency range: 824 - 831 MHz, 863-865 MHz
• Modulation mode: FM
• Number of frequencies: 2x 4-frequencies
• Operating range: 60m, typical
• Frequency response: 60 Hz - 16 kHz
• Frequency stability: +/- 0.005%, Phase lock loop frequency control


Receiver Specification

• Receiving system: Antenna switching diversity
• Image rejection: 55dB minimum
• Dynamic range: HH: 108 dB, BP 103 dB (@ max deviation)
• Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
• Total Harmonic Distortion: <1% - 20 kHz deviation @ 1 kHz
• Level control: Mic / Line (0 / -20dB)
• Antenna Input: BNC type, 50O - BIAS voltage 12V DC 100mA each
• Audio Output: Unbalanced -2dBV, Balanced 4dBV

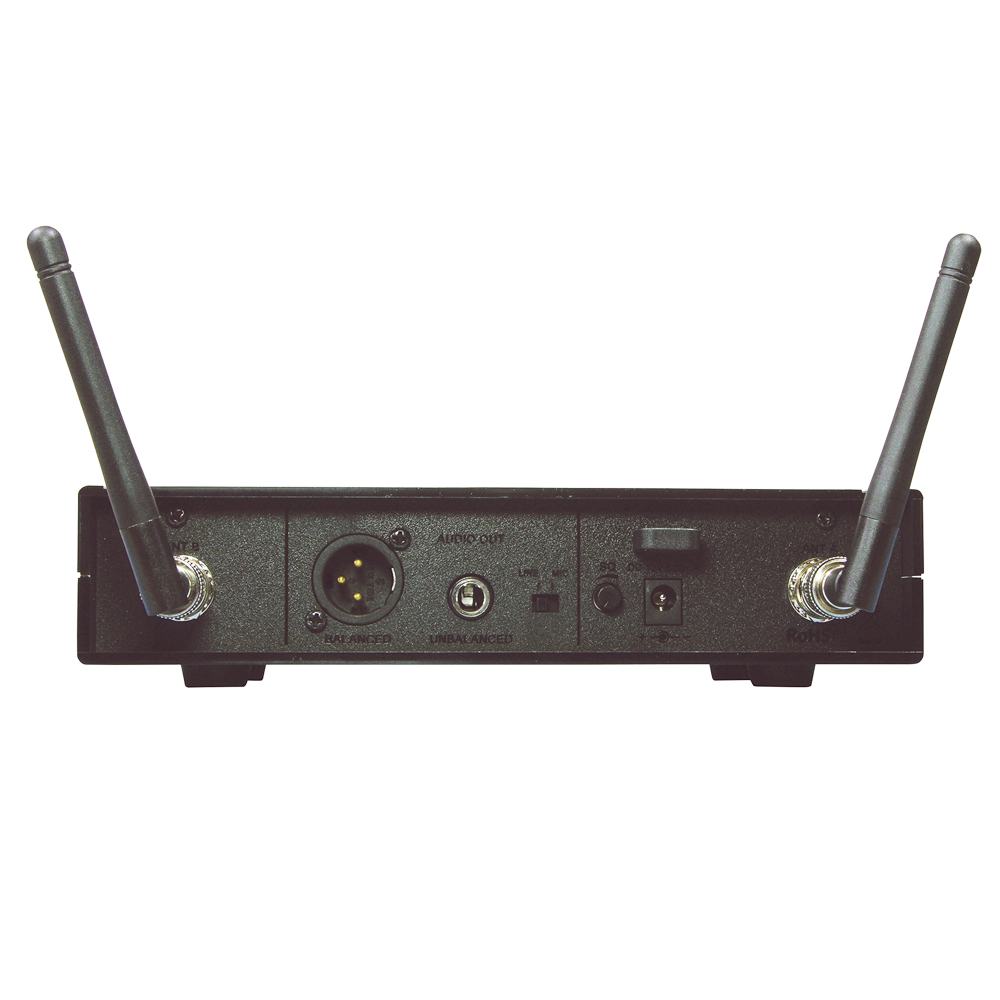

• Output connectors: Unbalanced: 6.3 mm mono jack, Balanced: XLRM-type
• Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)
• Weight: 418 g without accessories
• Accessories included: AC Adapter, Antennas, Rack mount adapter
