DMX-D4 - 4 WAY DMX BOOSTER/DISTRIBUTOR
Code: MX154101
£74.03
(£61.69
ex VAT)
Choose quantity
Order now for next working day dispatch.
Description

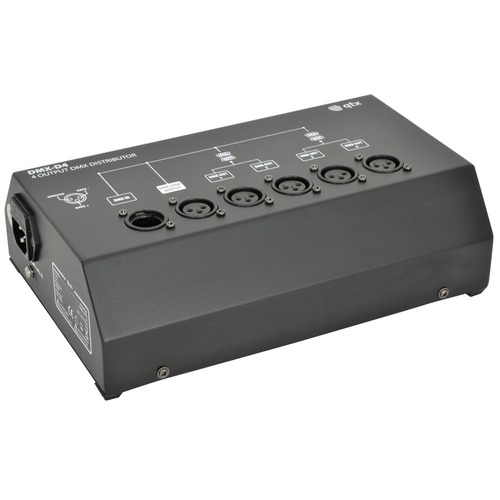

DMX-D4 - 4 WAY DMX BOOSTER/DISTRIBUTOR
This 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area rather than running a chain. The box will isolate individual sub chains, making it quick and easy to protect and fix faults when they occur without the whole system failing.
* DMX Loop out or DMX terminated (supplied)
* 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
* Powered by mains to boost signal over a long distance
AVSL product code 154.101UK
Details
Power supply 230Vac, 50Hz with UK plug
DMX inputs 1
DMX outputs 4
Dimensions 248 x 165 x 70mm
Weight 1.5kg
DMX inputs 1
DMX outputs 4
Dimensions 248 x 165 x 70mm
Weight 1.5kg
