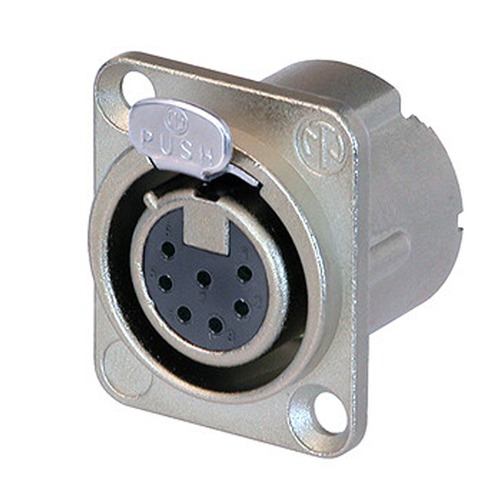

Neutrik NC7FD-LX 7 pin XLR chassis socket

Code: JAXR711

Write a review

£12.60 (£10.50 ex VAT)

Max 89 available

Choose quantity

Order now for dispatch on Mon 16th Dec.

Description

These are surplus ex-production stock we have in our stores.

The Neutrik DLX series female XLR connector has 7-pole with silver over Nickle-plating. It has a current rating of 7.5A with a voltage rating of 50V. This panel mount XLR connector features a compact all-metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

It is an ideal match for mating with Neutrik's EMC XLR cable connector.

Warning: Not to be used as mains connectors.

Features
D-style housing provides installation compatibility with industry standard D mounting dimensions
Duplex ground contact for excellent contact integrity between chassis and cable connector
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Larger solder contacts for easier termination
Optional connection to easily join pole-1 to chassis ground
Unique cage type female contact on the 7-pole version increases conductivity and reduces wear on the mated male contact
Operating temperature ranging between -30°C and 80°C

Neutrik Product code: NC7FD-LX
