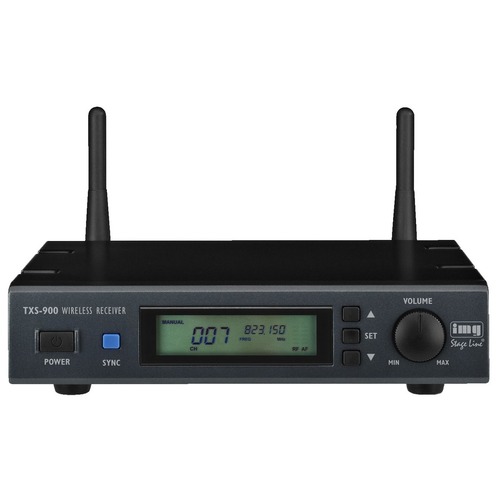

Multifrequency radio microphone receiver 823-832 & 863-865 MHz
Code: MZMTXS900
£297.18
(£247.65
ex VAT)
Quantity Pricing
2
+
£292.50
each
(£243.75
each ex VAT)
Choose quantity
Order now for dispatch on Thu 12th Feb.
Description
Multifrequency receiver unit with UHF PLL technology 823-832 MHz + 863-865 MHz.
- Channel 70 is licence-free in the UK - channel 65 use is subject to licencing
- 442 selectable channels
- Intermodulation-free presets, 4 groups with 8 channels each
- 12 intermodulation-free channels max. can be used in parallel (autoscan)
- SYNC function for transmitting the selected frequency to pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via infrared signal
- Autoscan with intermodulation detection
- True diversity system with removable antennas (BNC connection)
- Pilot tone squelch
- Volume and squelch controls
- LCD for indicating group/channel, frequency, RF receiving level, AF audio level
- XLR output (bal.) and 6.3 mm output (unbal.), switchable mic/line
- Robust metal housing
- Supplied with PSU
Some frequencies licence free in the EU.
Details about radio microphone licencing requirements in the UK can be found on the Ofcom website.
IMG STAGE LINE product code: TXS-900
Details
| Carrier frequency | 823-832 MHz + 863-865 MHz |
| RF S/N ratio | > 100 dB |
| Audio frequency range | 80-18,000 Hz |
| THD | < 1 % |
| Dynamic range | > 100 dB |
| Audio output | line: 75 mV, mic: 7 mV (jack,
unbal.)
line: 150 mV, mic: 15 mV (XLR, bal.) |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | via suppl.
plug-in PSU |
| Dimensions | 200x42x183 mm |
| Weight | 1.1 kg |
