Monacor TXA-1022CD 120W Portable PA System With Bluetooth and CD
Code: MZMTXA1022CD
£1,479.80
(£1,233.17
ex VAT)
Quantity Pricing
2
+
£1,456.50
each
(£1,213.75
each ex VAT)
Choose quantity
Order now for dispatch on Thu 5th Feb.
Description
Monacor TXA-1022CD Portable high-power amplifier systems
with integrated 2-channel UHF multifrequency receiver and
Bluetooth receiver.
Matching microphone transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT or the multi-frequency transmitter module TXA-1020MT are available as optional accessories.
- Amplifier system with 2-channel wireless receiver
- CD player with anti-shock system, MP3 reproduction and slot-in mechanism, pitch control function
- SD card reader, USB interface
- 1 wireless transmitter for wireless audio link operation of several TXA-1020 systems
- Supplied with remote control for CD player
- High-performance class D version 120 W, with optimum efficiency
- Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
- For mobile applications, e.g. sales events, lectures
- 2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
- 2-way speaker system of high power capability with a 25 cm (10") bass speaker

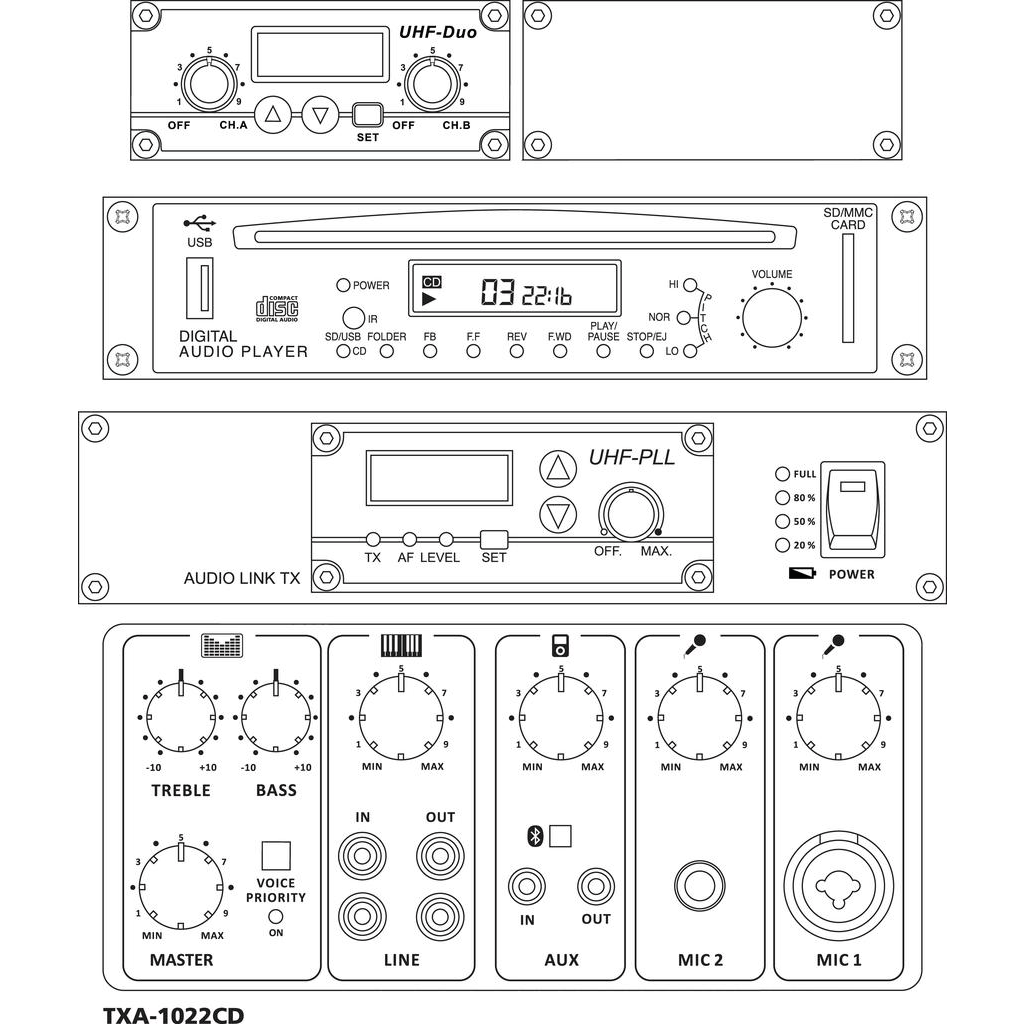

- 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
- Common master control, 2-way tone control
- 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
- Switchable microphone priority circuit

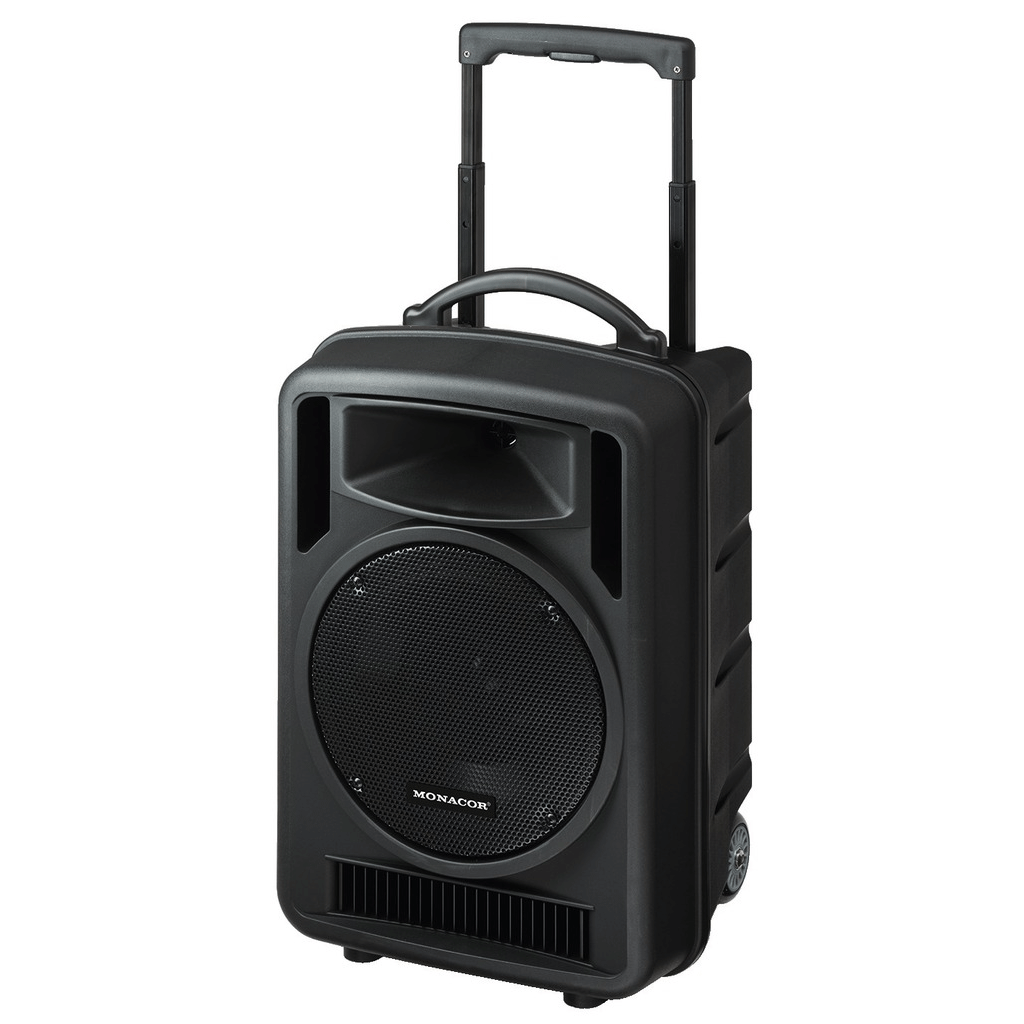

- Using its extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
- Speaker stand sleeve
Please note that radio microphone transmitters are not
included and need to be ordered separately as required.
Licence-free in the EU.
Matching microphone transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT or the multi-frequency transmitter module TXA-1020MT are available as optional accessories.

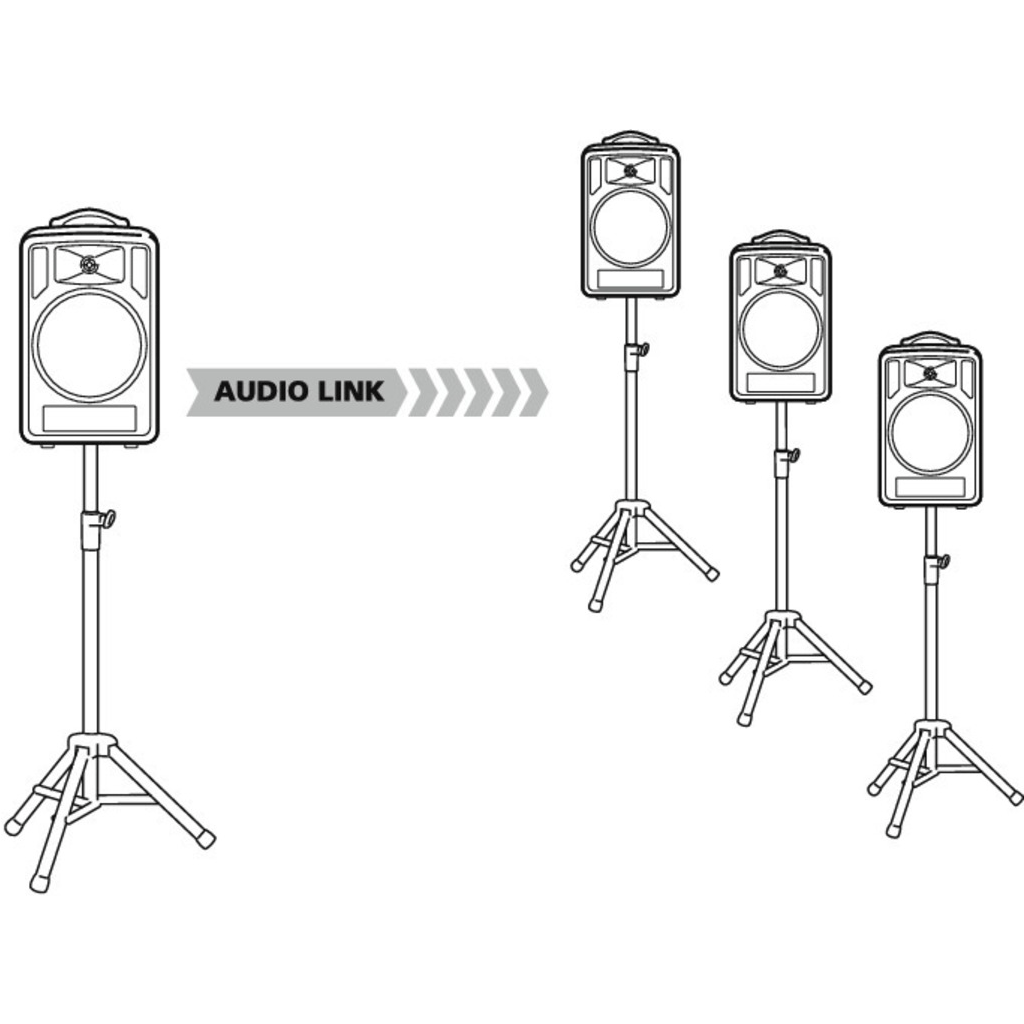

Audio link operation:
The integrated wireless transmitter of the TXA-1022CD transmits audio signals to one or several TXA-1020 systems. Ideally suited for larger indoor PA applications where a consistent sound radiation is required.
The integrated wireless transmitter of the TXA-1022CD transmits audio signals to one or several TXA-1020 systems. Ideally suited for larger indoor PA applications where a consistent sound radiation is required.
MONACOR product code: TXA-1022CD
Details
| Output power | 170 W MAX/120 W RMS |
| Frequency range | 20-20,000 Hz |
| Carrier frequency | 863.1-864.9 MHz |
| Operating range | approx. 30 m |
| Sensitivities | |
|
Mic inputs |
6 mV |
|
Line inputs |
300 mV (incl. aux) |
|
Link |
wireless |
| Equalizer, bass | ±10 dB/100 Hz |
|
Equalizer, midrange |
- |
|
Equalizer, treble |
±10 dB/10 kHz |
| Power supply | 230 V˜/50 Hz/170 VA,
rech. battery: 2 x 12 V/4.5 Ah |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 360x580x320 mm |
| Weight | 19.2 kg |
