Handheld radio micsystem - 80 channels 863-865MHz
Code: MZMTXS611SET
£190.50
(£158.75
ex VAT)
Quantity Pricing
2
+
£187.50
each
(£156.25
each ex VAT)
Choose quantity
Order now for dispatch on Thu 12th Feb.
Description

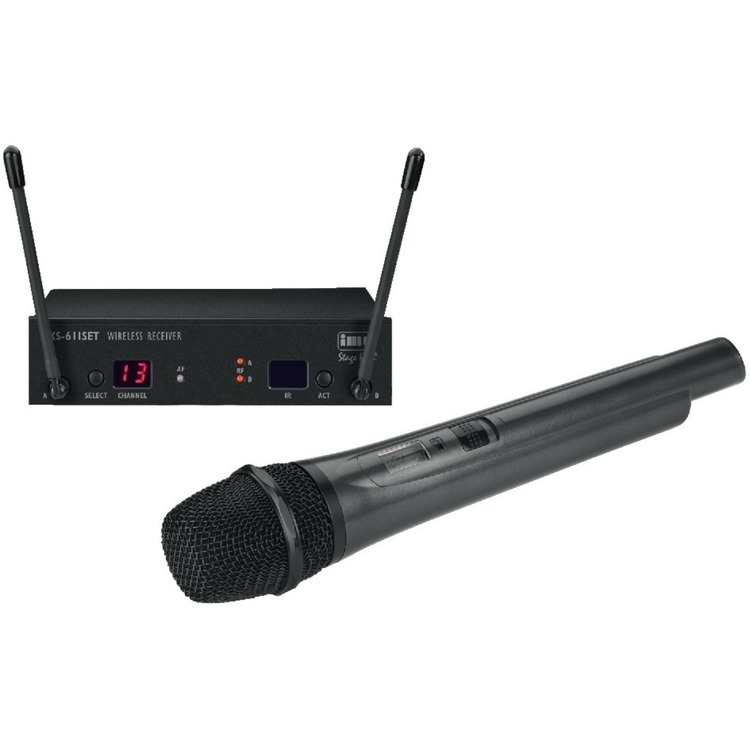

Handheld radio microphone system - 80 selectable UHF channels 863-865MHz
- UHF PLL technology.
- 1 hand-held microphone transmitter, 1 receiver, 1 plug-in PSU
- True diversity system
- 80 selectable UHF channels (863-865MHz)
- ACT function for transmitting the selected frequency to the hand-held microphone via infrared signal
- Automatic scan
- Volume and squelch controls
- Transmitting power can be switched at the hand-held microphone (high/low)
- Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (hand-held microphone)
- Robust metal housing (receiver)
Licence-free system in the EU.
IMG STAGE LINE product code: TXS-611SET
Details
| Carrier frequency | 863-865MHz |
| Transmitting power | < 10mW (EIRP) |
| RF S/N ratio | 105dB |
| Audio range | 50-18,000Hz, ±3dB |
| Dynamic range | 120dB |
| THD | < 0.5% |
| Audio output | 350mV/10k Ohm (jack)
25mV/10k Ohm (XLR, bal.) |
| Operating range | approx. 30m |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | |
|
Transmitter |
2 x 1.5V batt. AA size |
|
Receiver |
via suppl.
plug-in PSU |
| Dimensions | |
|
Transmitter |
? 52mm x 275mm |
|
Receiver |
152x38x120mm |
| Weight | |
|
Transmitter |
235g |
|
Receiver |
482g |
| Connections | 1 x 6.3mm jack, unbal.
1 x XLR, bal. |
