RG59B/U 75 Ohms Foamed PE Shortgun Cable with CCA Braid - 100m Black
Code: MX808105
Quantity Pricing
Choose quantity
Order now for dispatch in 1-2 working days.
Description

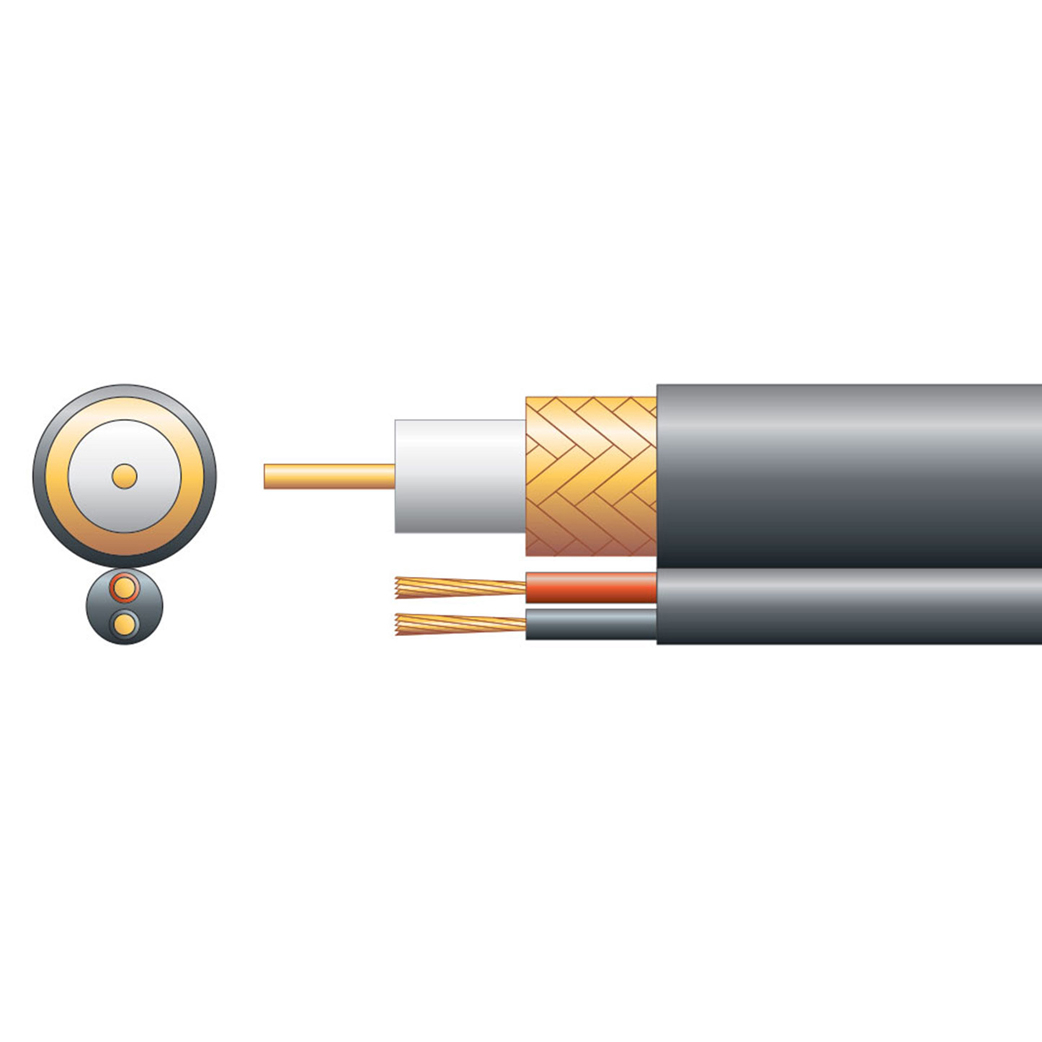

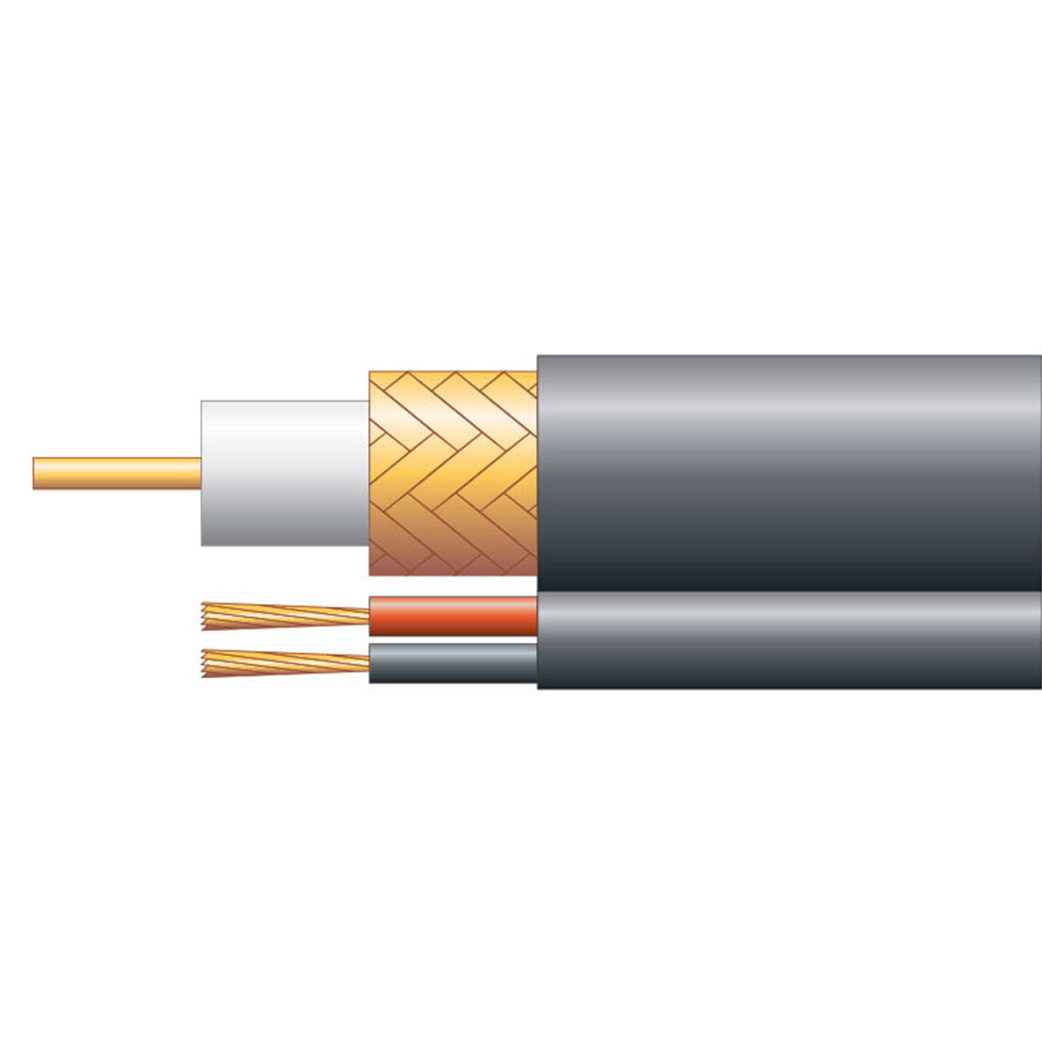

75 Ohms black RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.
- Cable colour black
- Solid OFC coaxial conductor
- Foam filled PE dielectric
- CCA braid
- Stranded OFC power cable conductor
- Supplied in 100m reel with metric cut markers
mercury product code: 808.105UK
Details
CSA 0.5mm²
Conductor diameter 0.8mmØ
Conductor material Solid OFC
Braid 48 x 0.12mmØ
Braid material CCA
Dielectric 3.7mmØ foam PE
Cable diameter 6mmØ
Impedance 75 Ohms
Capacitance 67pF/m
Velocity factor 83%
Power cable 2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
Max. current 6A
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 7.3dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 22.1dB max./100m
Attenuation @ 1000MHz 24.7dB max./100m
Attenuation @ 1750MHz 34.1dB max./100m
Attenuation @ 2150MHz 38.1dB max./100m
Colour Black
Length 100m
Weight 6.4kg
