100U 75 Ohms Foamed PE Coaxial Cable with CCA Braid - 100m White
Code: MX808151
Quantity Pricing
Choose quantity
Order now for dispatch in 1-2 working days.
Description

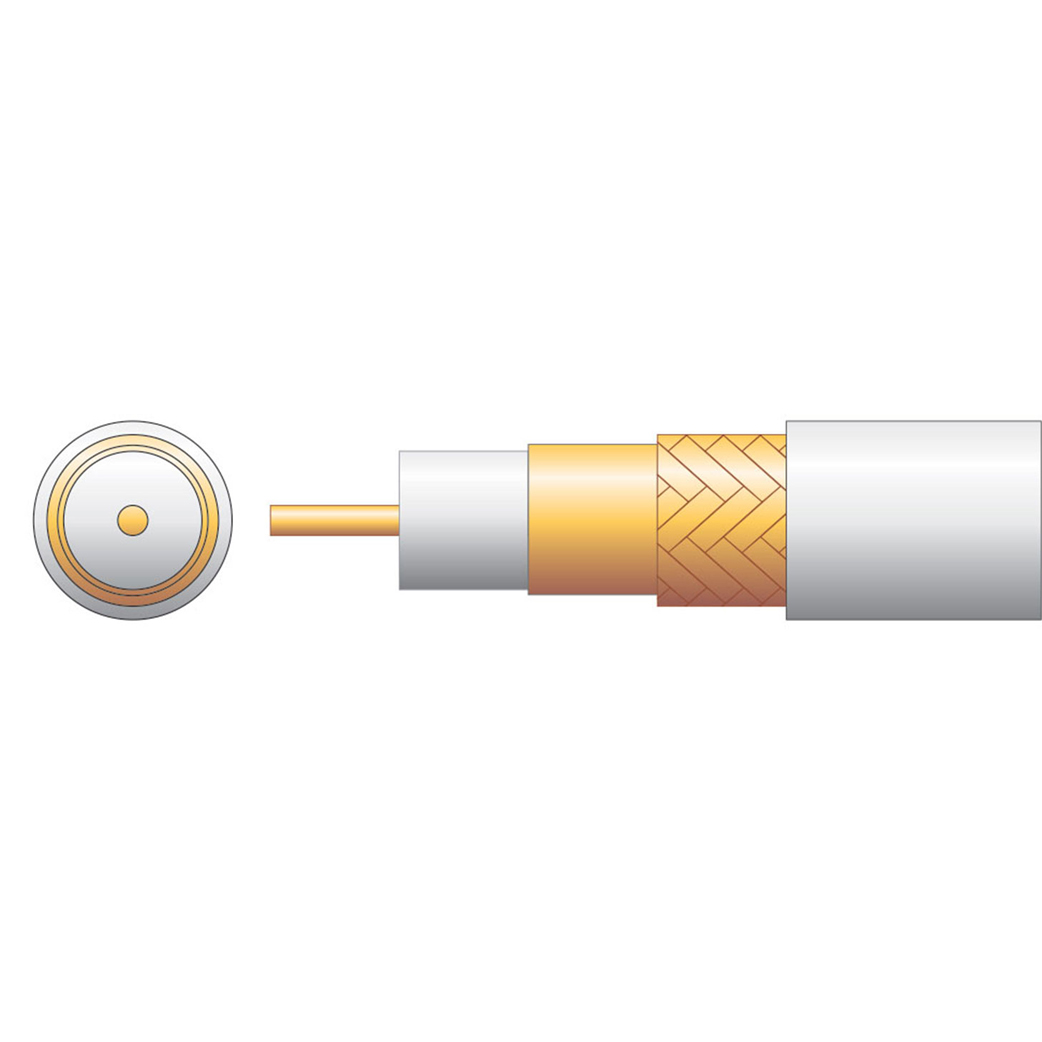

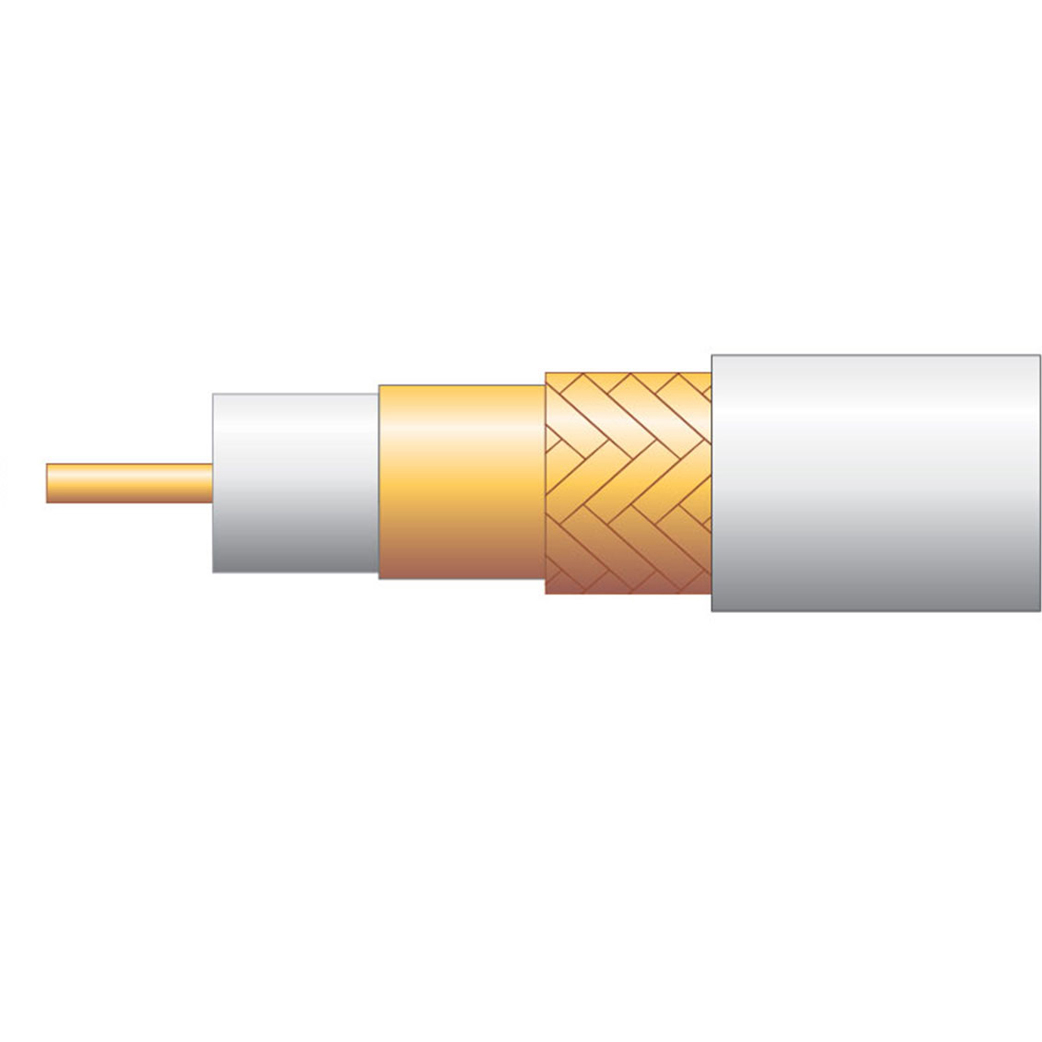

75 Ohms white 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
- Cable colour white
- Solid OFC conductor
- Foam filled PE dielectric
- Copper foil screen
- CCA braid
- Supplied in 100m or 250m reel with metric cut markers
mercury product code: 808.151UK
Details
CSA 0.79mm²
Conductor diameter 1mmØ
Conductor material Solid OFC
Braid 64 x 0.12mmØ
Braid material CCA
Screen Copper foil
Dielectric 4.6mmØ foam PE
Cable diameter 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 28dB min./100m
Return loss 450-1000MHz 24dB min./100m
Return loss 1000-2150MHz 18dB min./100m
Attenuation @ 5MHz 1.8dB max./100m
Attenuation @ 50MHz 4.7dB max./100m
Attenuation @ 100MHz 6.6dB max./100m
Attenuation @ 200MHz 9.7dB max./100m
Attenuation @ 400MHz 14.6dB max./100m
Attenuation @ 860MHz 19.6dB max./100m
Attenuation @ 1000MHz 21.6dB max./100m
Attenuation @ 1750MHz 29.1dB max./100m
Attenuation @ 2150MHz 32.7dB max./100m
Colour White
Length 100m
Weight 4kg
