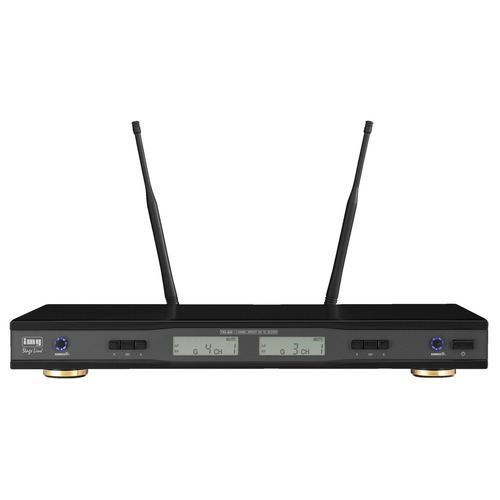

TXS-865 Dual-channel diversity UHF radio mic receiver 506-542 MHz
Code: MZMTXS865
£443.58
(£369.65
ex VAT)
Quantity Pricing
2
+
£436.60
each
(£363.83
each ex VAT)
Choose quantity
Order now for dispatch on Thu 12th Feb.
Description
The improvement of the transmission quality and maximising the
operating range ensure reliability and provide flexibility! These
features have been realised by an innovative circuit design and a
switchable transmitting power. A high-quality wireless audio
transmission of up to 300m in a free field outdoors is thus
possible without any problems!
Rapid transmission: due to REMOSET, the frequency of a
corresponding hand-held transmitter or pocket transmitter can
easily be set up via the receiver. It is possible to remotely set
the desired transmission channel at the transmitter via radio
signal, no visual contact required. This can even be
done during a live performance! An intelligent carrier
analysis method provides user support by only allowing transmission
channels on which no other transmitter is active.
2-channel diversity UHF PLL receiver,
with REMOSET technology.
- 124 selectable channels in 6 channel groups (506-542 MHz)
- Parallel operation of up to 20 channels
- Diversity system with removable antennas (BNC connection)
- Integrated scan function
- Pilot tone squelch and noise squelch
- Attenuator with 2-way switching
- LCD for receiver channel/receiver group, audio level/RF level, mute, lock, active antenna and battery status of the transmitter
- XLR output for each channel, bal.
- 6.3 mm output for mixed signal, bal.
- 482 mm (19") rack installation possible with supplied mounting brackets
- Supplies operating voltage to TXS-870B
IMG STAGE LINE product code: TXS-865
Details
| Carrier frequency range | 506-542 MHz |
| Audio frequency range | 40-18,000 Hz |
| THD | < 0.6 % |
| Dynamic range | > 105 dB |
| Output voltage | 100 mV XLR,
100 mV jack |
| Connections | XLR, bal.,
6.3 mm jack, bal. |
| Power supply | via suppl. PSU |
| Operating time | - |
| Dimensions | 420x54x230 mm |
| Weight | 2 kg |
