UHF PLL Dynamic Handheld Radio mic Transmitter 506-542 MHz
Code: MZMTXS865HT
£276.61
(£230.51
ex VAT)
Quantity Pricing
2
+
£272.26
each
(£226.88
each ex VAT)
Choose quantity
Order now for dispatch on Thu 12th Feb.
Description
The improvement of the transmission quality and maximising the
operating range ensure reliability and provide flexibility! These
features have been realised by an innovative circuit design and a
switchable transmitting power. A high-quality wireless audio
transmission of up to 300m in a free field outdoors is thus
possible without any problems!
Rapid transmission: due to REMOSET, the frequency of a
corresponding hand-held transmitter or pocket transmitter can
easily be set up via the receiver. It is possible to remotely set
the desired transmission channel at the transmitter via radio
signal, no visual contact required. This can even be
done during a live performance! An intelligent carrier
analysis method provides user support by only allowing transmission
channels on which no other transmitter is active.

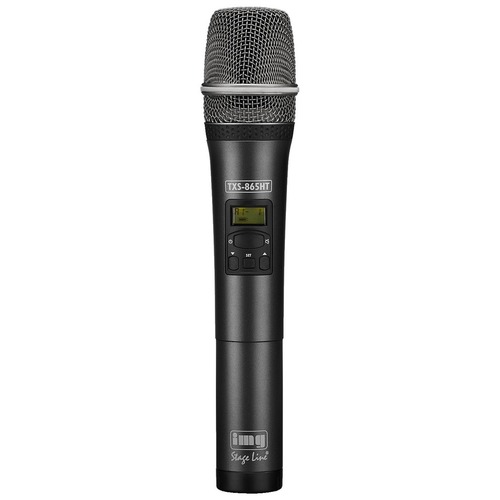

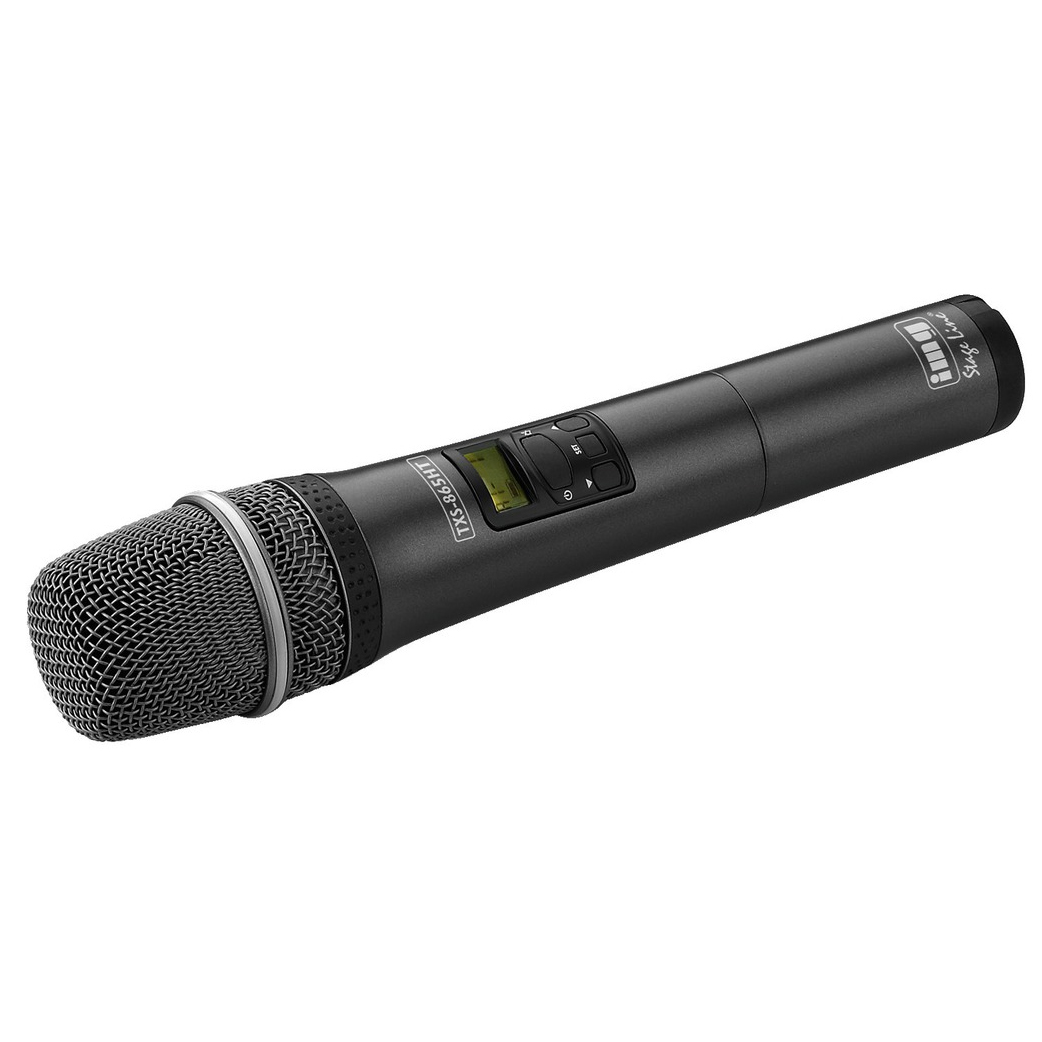

Dynamic hand-held UHF PLL transmitter,
with REMOSET technology.
- Dynamic microphone cartridge, cardioid characteristic
- 124 selectable channels in 6 channel groups (506-542 MHz)
- Adjustable sensitivity (12 dB to -18 dB)
- Lock function/mute function
- Backlit LCD for indicating channel and battery status
- Switchable transmitting power: 10 mW/50 mW (EIRP)
- Power supply via 2 x 1.5 V battery AA size (not supplied)
- Supplied with robust transport case and stand clamp
Licence required for this system in the EU!
IMG STAGE LINE product code: TXS-865HT
Details
| System | dyn./cardioid |
| Carrier frequency range | 506-542 MHz |
| Audio frequency range | 50-16,000 kHz |
| Frequency stability | ±0.005 % |
| Transmitting power | 10 mW/50 mW,
switchable |
| Power supply | 2 x batt. AA size,
alkaline not supplied
|
| Operating time | > 25 h |
| Dimensions | Ø 50 mm x 250 mm |
| Weight | 350 g |
