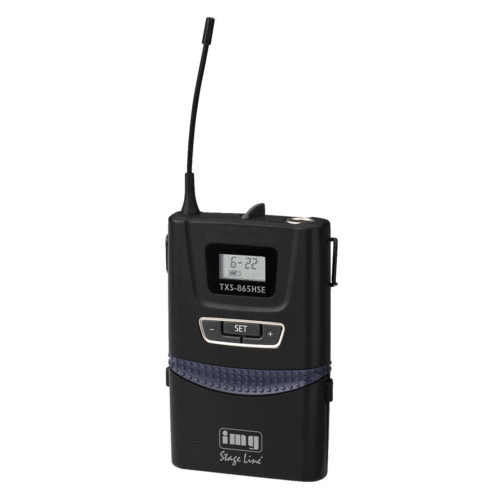

UHF PLL Dynamic Belt Pack Radio mic Transmitter 506-542 MHz
Code: MZMTXS865HSE
£272.80
(£227.33
ex VAT)
Quantity Pricing
2
+
£268.50
each
(£223.75
each ex VAT)
Choose quantity
Order now for dispatch on Thu 12th Feb.
Description
The improvement of the transmission quality and maximising the
operating range ensure reliability and provide flexibility! These
features have been realised by an innovative circuit design and a
switchable transmitting power. A high-quality wireless audio
transmission of up to 300 m in a free field outdoors is
thus possible without any problems!
Rapid transmission: due to REMOSET, the frequency of a
corresponding hand-held transmitter or pocket transmitter can
easily be set up via the receiver. It is possible to remotely set
the desired transmission channel at the transmitter via radio
signal, no visual contact required. This can even be
done during a live performance! An intelligent carrier
analysis method provides user support by only allowing transmission
channels on which no other transmitter is active.
UHF PLL pocket transmitter,
with REMOSET technology.
- Suitable for the combination with headband microphone or earband microphone with 3-pole mini XLR connector
- 124 selectable channels in 6 channel groups (506-542 MHz)
- Adjustable sensitivity (12 dB to -18 dB)
- Switchable attenuator (0 dB/-6 dB/-20 dB)
- Lock function
- Backlit LCD for indicating channel and battery status
- Transmitting power: 10 mW (EIRP)
- Power supply via 2 x 1.5 V battery AA size (not supplied)
Licence required for this system in the EU!
IMG STAGE LINE product code: TXS-865HSE
Details
| Carrier frequency range | 506-542 MHz |
| Audio frequency range | 40-18,000 Hz |
| Frequency stability | ±0.005 % |
| Transmitting power | 10 mW |
| Connections | 3-pole mini XLR |
| Power supply | 2 x batt. AA size,
alkaline |
| Operating time | > 25 h |
| Dimensions | 68x172x21 mm |
| Weight | 77 g |
